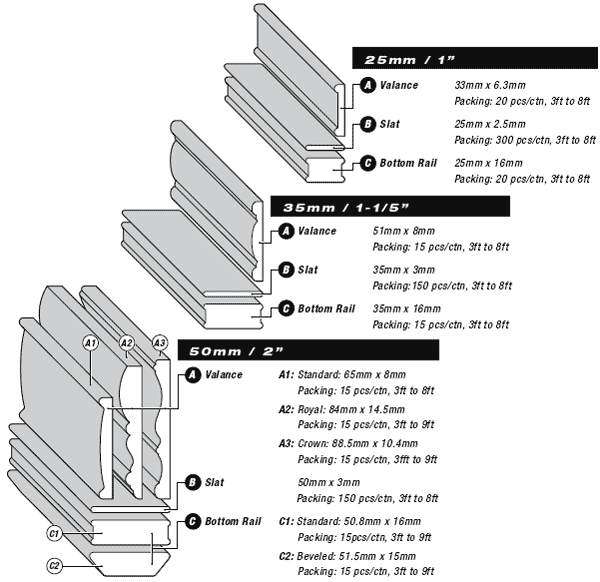

Bass Wood / Hardwood Specification
Specification Table
Conversation factor:
1.0 inch = 2.54 cm or 25.4 mm |
Metric Dimensions |
English Dimensions |
| Component Sizes |
Width |
Thickness (mm) |
Tolerance (± mm) |
Width (in.) |
Thickness (in.) |
Tolerance (± in.) |
| Slat |
25.0 |
2.50 |
0.20 |
1.00 |
0.1000 |
0.0078 |
| |
35.0 |
3.00 |
0.20 |
0.375 |
0.1338 |
0.0078 |
| |
50.0 |
3.00 |
0.20 |
2.00 |
0.1338 |
0.0078 |
| Bottom Rail |
25.4 |
16.00 |
0.20 |
1.00 |
0.6300 |
0.0078 |
| |
35.0 |
16.00 |
0.20 |
1.40 |
0.6300 |
0.0078 |
| |
50.8 |
16.00 |
0.20 |
2.00 |
0.6300 |
0.0078 |
| Valance |
33.0 |
7.00 |
0.20 |
1.30 |
0.2760 |
0.0078 |
| |
65.0 |
8.00 |
0.20 |
2.56 |
0.3150 |
0.0078 |
| |
79.0 |
8.00 |
0.20 |
3.11 |
0.3150 |
0.0078 |
| |
84.0 |
14.50 |
0.20 |
3.30 |
0.5700 |
0.0078 |
| |
89.0 |
8.00 |
0.20 |
3.50 |
0.3150 |
0.0078 |
| Warp: Maximum Allowable |
| Slat (Bow & Chamber) |
<4.0 ft. |
|
3.00 |
<4.0 ft. |
|
0.125 |
| |
4 to 6 ft. |
|
4.00 |
4 to 6 ft. |
|
0.1875 |
| |
>6.0 ft. |
|
6.00 |
>6.0 ft. |
|
0.25 |
| Bottom Rail & Valance |
<4.0 ft. |
|
6.00 |
<4.0 ft. |
|
0.25 |
| (Bow & Chamber) |
4 to 6 ft. |
|
10.00 |
4 to 6 ft. |
|
0.375 |
| |
>6.0 ft. |
|
13.00 |
>6.0 ft. |
|
0.5 |
| Moisture Content |
|
|
8%±2% |
|
|
8%±2% |
| Surface Standards: Pinholes |
Not to exceed 1.59 mm dia., and not through slat. |
Not to exceed 0.625″ dia., and not through slat. |
| Surface Standards: Knots |
Not to exceed 6.35 mm dia., unless filled. Must be solid. |
Not to exceed 0.25″ dia., unless filled. Must be solid. |
